NON - DESTRUCTIVE TEST (NDT)

We Are Professional

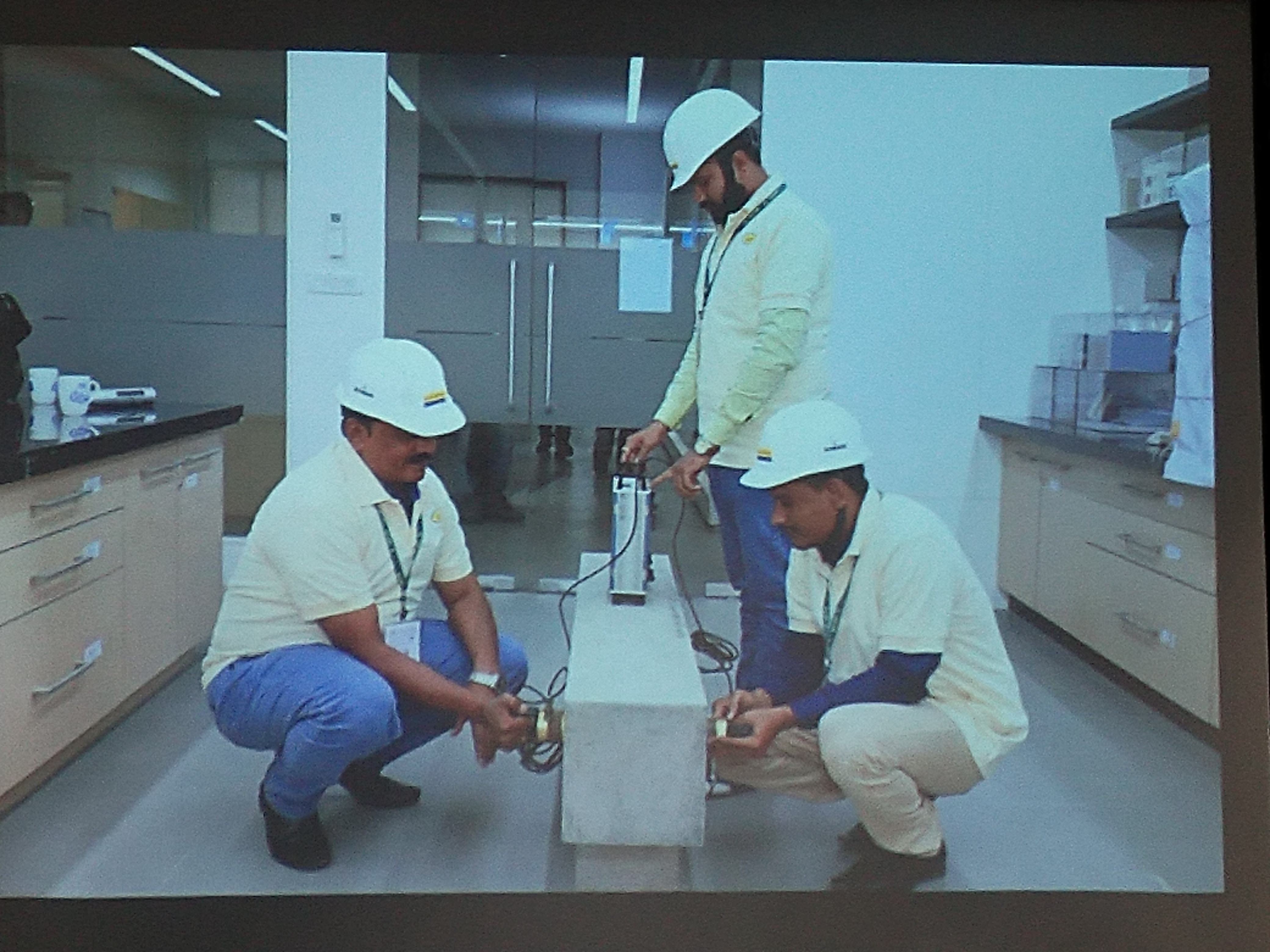

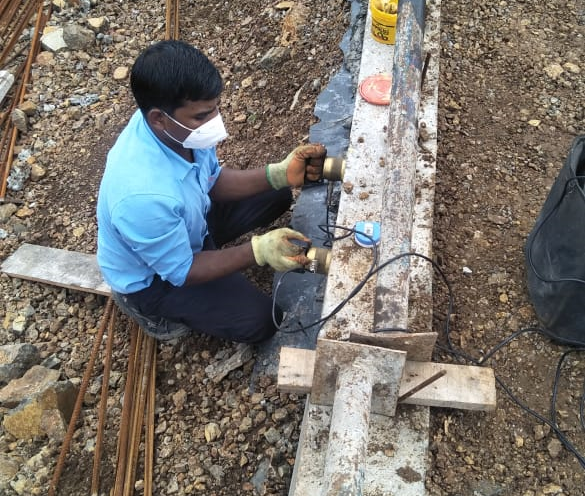

Ultrasonic Concrete Tesing

Sr. No. Particulars Test Method/ Reference Code Sample size required Significance
1 For Columns S 13311 (Part 1)199 Two Points are recomended per member Quality of concrete can be assesed in terms of uniformity & integrity by UPV and Rebound hammer tests.
2 For Beams S 13311 (Part 1)199 Two Points are recomended per member Quality of concrete can be assesed in terms of uniformity & integrity by UPV and Rebound hammer tests.
3 For Footing S 13311 (Part 1)199 Two Points are recomended per member Quality of concrete can be assesed in terms of uniformity & integrity by UPV and Rebound hammer tests.
4 For Slab S 13311 (Part 1)199 Two Points are recomended per member Quality of concrete can be assesed in terms of uniformity & integrity by UPV and Rebound hammer tests.

Mechanical Sclerometer Test ( N Type proceq Rebound Hammer)

Sr. No. Particulars Test Method/ Reference Code Sample size required Significance
1 For Columns S 13311 (Part 2)199 Ten to Twelve hammer readings are taken for each Quality of concrete can be assesed in terms of uniformity & integrity by UPV and Rebound hammer tests.
2 For Beams, Footings and Slabs S 13311 (Part 2)199 Ten to Twelve hammer readings are taken for each Quality of concrete can be assesed in terms of uniformity & integrity by UPV and Rebound hammer tests.

Note :

  • Minimum billing for UPV and rebound hammer is Rs. 7500/- per visit. (Maximum 15 Points)
  • Minimum billing for only rebound hammer is Rs. 5000/- per visit. (Maximum 25 Points)
  • Traveling charges Rs. 1500 extra within PMC & PCMC area
