Reinforcement Steel Testing

We Are Professional


Reinforcement Steel Testing


Sr. No. Particulars Test Method/ Reference Code Sample size required Significance
1 Mass Per Meter IS:1786-2008 3 Pieces of 1400 mm for bar Dia up to 25mm and 1600mm for 32mm Dia Mechanical Properties Indicate the quality of steel to be used in buildings
2 Tensile Strength, 0.2% Proof Stress-Yield Stress IS:1608-2018 (Part-I) 3 Pieces of 1400 mm for bar Dia up to 25mm and 1600mm for 32mm Dia Mechanical properties indicate the quality of steel to be used in buildings.

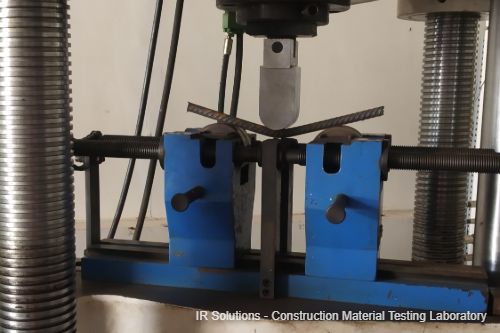

3 BEND @ (180o) IS:1599-2019 3 Pieces of 1400 mm for bar Dia up to 25mm and 1600mm for 32mm Dia Mechanical properties indicate the quality of steel to be used in buildings.
4 REBEND @ (135o/157.5o) IS:1786-2008 3 Pieces of 1400 mm for bar Dia up to 25mm and 1600mm for 32mm Dia Mechanical properties indicate the quality of steel to be used in buildings.

Structural Steel Testing


Sr. No. Particulars Test Method/ Reference Code Sample size required Significance
1 Mass Per Meter IS:1786-2008 3 Pieces of 1400 mm for bar Dia up to 25mm and 1600mm for 32mm Dia Mechanical Properties Indicate the quality of steel to be used in buildings
2 Tensile Strength, 0.2% Proof Stress-Yield Stress IS:1608-2018 (Part-I) 3 Pieces of 1400 mm for bar Dia up to 25mm and 1600mm for 32mm Dia Mechanical properties indicate the quality of steel to be used in buildings.
